Lineup
Japanese
2nd New product

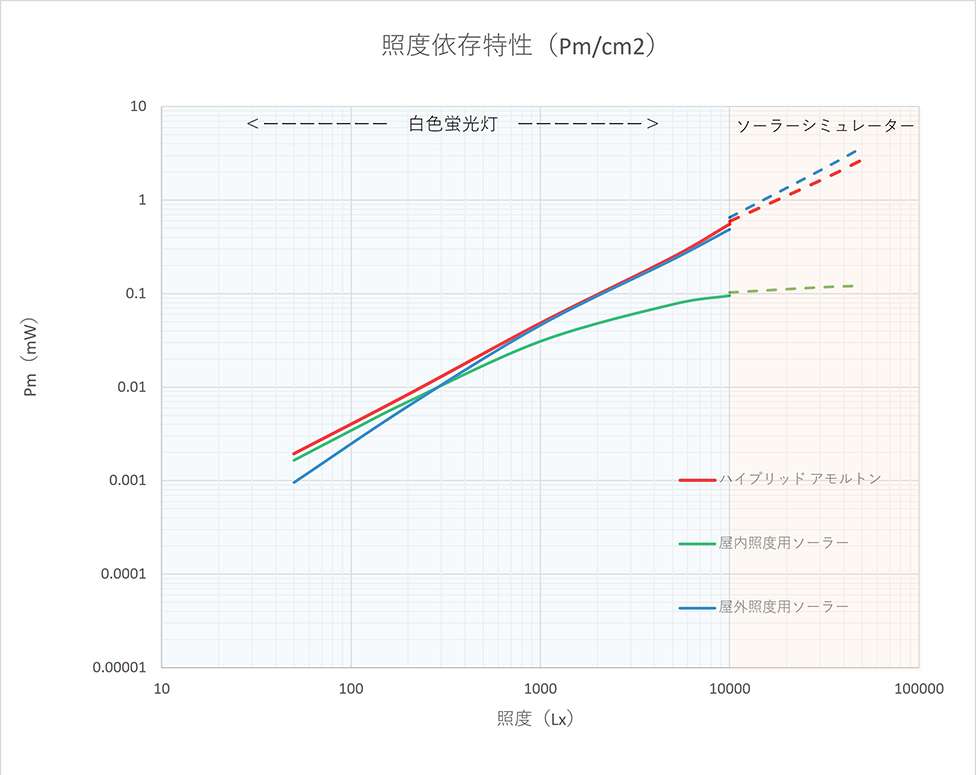

- Here we have the hybrid Amorton which can be used both indoors and outdoors!
1st New Product
- Improved current value of 10 %
- Improved appearance
Lineup
The following are the standard products included in our lineup.
Designs may be customized based on requests.
2nd New Products
Please scroll sideways
| Product name | Substrate | Fluorescent light-200Lx (25℃) | SS-50kLx (25℃) | L (mm) |
W (mm) |
Thickness (mm) |
Weight (g) |
Spec | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voc (V) |
Isc (μA) |
Vope (V) |
Iope (μA) |
Voc (V) |
Isc (mA) |
Vope (V) |
Iope (mA) |
|||||||
| AMH-6701 | Glass | 4.7 | 20.8 | 3.0 | 20.0 | 6.1 | 6.5 | 3.0 | 6.4 | 55.0 | 25.0 | 1.1 | 3.80 |  |
| AMH-6801 | Glass | 5.3 | 8.6 | 3.5 | 8.3 | 6.9 | 3.0 | 4.0 | 2.8 | 37.8 | 36.95 | 0.4 | 1.25 | |
*round shape
※The above patterns are representative operating patterns (intial/default values)
※SS: solar simulator
1st New Products
Please scroll sideways
| Product name | Substrate | Fluorescent light : 200lx (25℃) | L (mm) |
W (mm) |
Thickness (mm) |
Weight (g) |
Spec | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Voc (V) |
Isc (μA) |
Vope (V) |
Iope (μA) |
|||||||
| AMG-1401 | Glass | 2.7 | 43.3 | 1.5 | 40.7 | 41.4 | 26.1 | 1.1 | 3.01 | |
| AMG-1701 | Glass | 4.7 | 26.0 | 3.0 | 25.2 | 48.3 | 26.1 | 1.1 | 3.54 | |
※The above patterns are representative operating patterns (initial/default values).
indoor
Please scroll sideways
| Product name | Substrate | Fluorescent light : 200lx (25℃) | L (mm) |
W (mm) |
Thickness (mm) |
Weight (g) |
Spec | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Voc (V) |
Isc (μA) |
Vope (V) |
Iope (μA) |
|||||||
| AM-1312 | Glass | 1.9 | 17.6 | 1.2 | 16.2 | 38.0 | 12.5 | 1.1 | 1.3 | |
| AM-1437 | Glass | 2.5 | 9.2 | 1.5 | 8.5 | 29.6 | 11.8 | 1.1 | 1.0 | |
| AM-1407 | Glass | 2.5 | 13.1 | 1.5 | 12.2 | 38.0 | 12.5 | 1.1 | 1.3 | |
| AM-1417 | Glass | 2.5 | 14.1 | 1.5 | 13.3 | 35.0 | 13.9 | 1.1 | 1.3 | |
| AM-1424 | Glass | 2.5 | 22.0 | 1.5 | 20.6 | 53.0 | 13.8 | 1.1 | 2.0 | |
| AM-1454 | Glass | 2.5 | 35.2 | 1.5 | 33.3 | 41.6 | 26.3 | 1.1 | 3.0 | |
| AM-1513 | Glass | 3.1 | 16.8 | 1.8 | 15.9 | 55.0 | 13.5 | 1.1 | 2.0 | |
| AM-1522 | Glass | 3.1 | 62.2 | 2.1 | 58.7 | 55.0 | 40.5 | 1.1 | 6.3 | |
| AM-1606 | Glass | 3.7 | 3.6 | 2.6 | 3.4 | 15.0 | 15.0 | 0.7 | 0.4 | |
| AM-1713 | Glass | 4.4 | 16.7 | 3.0 | 15.2 | 96.6 | 10.0 | 1.1 | 2.7 | |
| AM-1719 | Glass | 4.4 | 18.6 | 3.0 | 17.3 | 41.6 | 26.3 | 1.1 | 3.1 | |
| AM-1819 | Glass | 5.0 | 8.1 | 3.0 | 6.9 | 31.0 | 24.0 | 1.1 | 2.2 | |
| AM-1820 | Glass | 5.0 | 14.8 | 3.0 | 13.8 | 43.0 | 26.0 | 1.1 | 3.1 | |
| AM-1805 | Glass | 5.0 | 16.8 | 3.0 | 15.7 | 55.0 | 20.0 | 1.1 | 3.0 | |
| AM-1801 | Glass | 5.0 | 20.2 | 3.0 | 18.9 | 53.0 | 25.0 | 1.1 | 3.6 | |
| AM-1815 | Glass | 5.0 | 48.2 | 3.0 | 45.7 | 58.1 | 48.6 | 1.1 | 7.8 | |
| AM-1816 | Glass | 5.0 | 96.7 | 3.0 | 92.2 | 96.7 | 56.7 | 1.1 | 15.6 | |
※The above patterns are representative operating patterns (initial/default values).
watches
Please scroll sideways
| Product name | Substrate | Fluorescent light : 200lx (25℃) | L (mm) |
W (mm) |
Thickness (mm) |
Weight (g) |
Spec | |
|---|---|---|---|---|---|---|---|---|
| Vope (V) |
Iope (μA) |
|||||||
| AT-2400B | Film | 1.5 | 18.5 | 26.3 | 26.8 | 0.18 | 0.1 | |
| AT-26L0B | Film | 2.6 | 14.6 | 26.3 | 26.8 | 0.18 | 0.1 | |
| AM-2709B | Glass | 3.0 | 3.3 | Φ30.8 | 0.7 | 1.3 | |
|
※The above patterns are representative operating patterns (initial/default values).
photosensors
Please scroll sideways
| Product name | Substrate | Fluorescent light : 200lx (25℃) | L (mm) |
W (mm) |
Thickness (mm) |
Weight (g) |
Spec | |
|---|---|---|---|---|---|---|---|---|
| Vope (V) |
Iope (μA) |
|||||||
| AM-30-11 | Glass | 0.6 | 17.7 | 14.0 | 13.0 | 1.1 | 0.6 | |
※The above patterns are representative operating patterns (initial/default values).
